Top Automatic Modular Fire Extinguisher Map 90 Based In

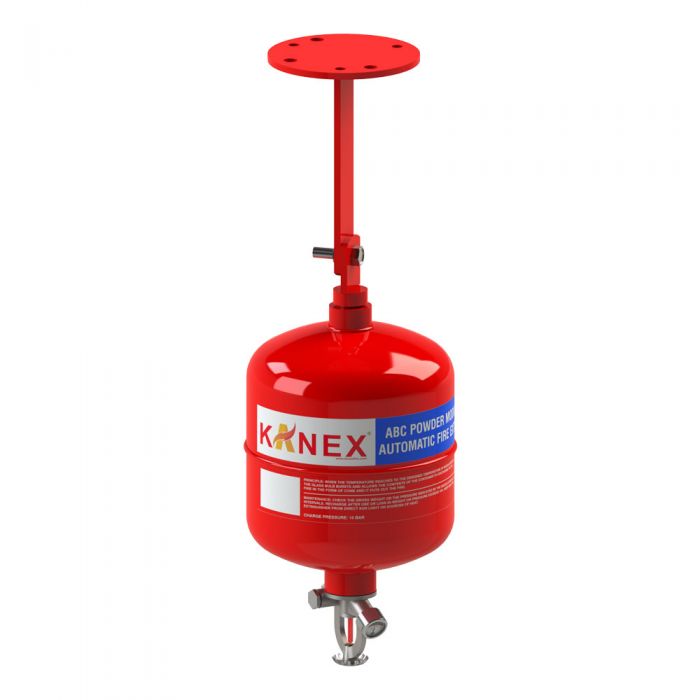

Automatic Modular Fire Extinguisher (MAP 90 Based)

Self-Activating Ceiling-Mounted Protection for High-Risk Areas

Key Features:

High-Quality MAP 90% Powder: Delivers rapid and effective fire suppression, especially suited for Class A, B, and C fires.
Unique Gauge Testing System (UGTS): Ensures optimal internal pressure and operational readiness.
Brass Chrome-Plated Discharge Sprinkler: Corrosion-resistant and highly durable for reliable actuation.
Durable Coating: Tough internal and external protection using pure polyester (PP) powder for enhanced longevity.
Automatic Detection & Suppression: Combines both functionalities in a single unit—activates automatically when fire is detected.
Factory Hydro-Tested Shells: Each unit is pressure-tested at over 35 bar to ensure maximum safety and durability.
Expelling Agent: Filled with UHP (Ultra High Purity) grade nitrogen for consistent and clean discharge.
Anti-Corrosive Phosphate Treatment: Prevents rust and prolongs operational life of the unit.
Operates Independently: Functions without external power—providing protection during power outages or electrical failures.
Economical & Easy Maintenance: Designed for effortless servicing, recharging, and long-term cost efficiency.
Bar Code Labeling: Enables accurate tracking, maintenance logging, and better inventory control.

TECHNICAL SPECIFICATIONS

MODEL	KMPRQ-2-90
Capacity	2 kg	Design	Ceiling Mounted
Height (Approx.)	380 mm	Diameter (Approx.)	150±10 mm
Average Discharge Time	4-5 Sec.	Average Range of throw	2 m
Average Discharge	98%	Operating Temperature	-30 °C to +55 °C
Service/Max. service/Test Pressure	15 / 35 bar	Expelling Agent	Nitrogen (UHP Grade)
Full Weight (Approx.)	3.6 kg	Empty Weight (Approx.)	1.6 kg
Shipping Weight (Approx.)	3.7 kg	Mounting Bracket	Ceiling mounting stand
Approvals	Any Government approved Lab	Volume Protection	2.5 m 3
Area Protection	1-1.5 m 2
