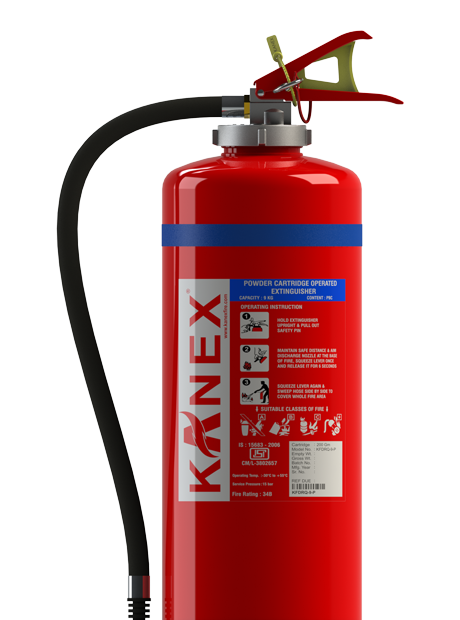

DCP PBC Based Portable Stored Pressure
Viaan Enterprise PBC Powder Fire Extinguishers offer exceptional fire suppression capabilities and are designed for a variety of demanding environments.
Application Areas:
- Petrol & Oil Burning
- Light Manufacturing
- Machining Operations
- Welding Areas
- Warehouses
- Gas/Fueling Stations
- Paint Processing Areas
- Parking Garages
- Material Handling Vehicles
- Maintenance Facilities
- Construction Sites
- Propane Filling and Storage
- Repair Shops
- Marine Risks
- Refineries
- Vehicles
Key Features:
- High-Quality PBC Powder: Effective against Class B, C, and electrical fires
- CO2 Gas Cylinder: Conforms to IS: 4947
- Brass Chrome-Plated Valve
- Durable Coating: Epoxy polyester internally and pure polyester powder coating externally
- Top Fire Ratings: Among the best in its class
- BIS Approved: Conforms to IS 15683:2006 and ISI marked
- Flexible EPDM Hose: Resistant to cracking
- Tamper Seal: Detects mishandling
- Anti-Corrosive Phosphate Treatment: Protects cylinders
- Large Loop Stainless Pull Pin
- Lever Lock: Enhances handling
- Bar Code Labeling: Improves traceability
- Easy Maintenance: Simple to recharge and service
Choose Viaan Enterprise for reliable and effective fire protection across a range of applications.
Techniclal Specifications
| MODEL | KFDRQ-4-P | ||
|---|---|---|---|
| Capacity | 4 kg | Design | Hose & Nozzle |
| Fire Rating | 183B | Height (Approx.) | 510 mm |
| Diameter (Approx.) | 140±10 mm | Average Discharge Time | 15 Sec. |
| Average Range of throw | 4 m | Average Discharge | 95% |
| Operating Temperature | -30 °C to +60 °C | Service/Max. service/Test Pressure | 15 / 17 / 35 bar |
| Expelling Agent | Co2 gas | Full Weight (Approx.) | 8 kg |
| Empty Weight (Approx.) | 4 kg | Shipping Weight (Approx.) | 8.3 kg |
| Packing Standard | 2 in 1- 21"X6.75"X14.10” | Mounting Bracket | Wall bracket |
| Approvals | BIS |
