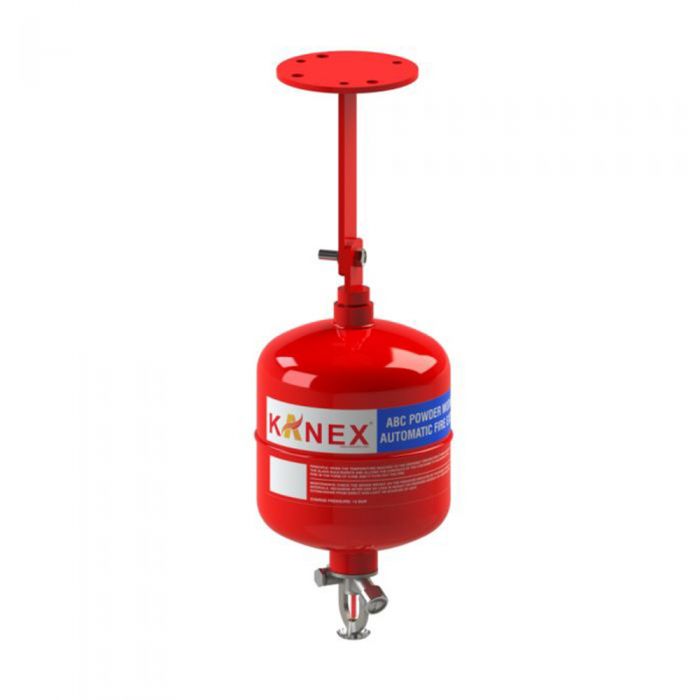

Automatic Modular Fire Extinguisher (MAP 50 Based)

Compact, Self-Activating Fire Protection for High-Risk Zones

Application Areas:

Key Features:

High-Quality MAP 50% Powder: Effective for Class A, B, and C fires, offering quick fire knockdown capabilities.
Unique Gauge Testing System (UGTS): Monitors internal pressure to ensure constant readiness.
Brass Chrome-Plated Discharge Sprinkler: Highly durable and corrosion-resistant for reliable operation.
Durable Coating: Internally and externally coated with Pure Polyester (PP) powder for enhanced longevity and rust resistance.
Automatic Activation: Combines heat-sensitive detection and suppression in a single, self-contained unit.
Hydro-Tested Cylinders: Every extinguisher shell is pressure-tested at over 35 bar to guarantee performance under stress.
Expelling Agent: Uses Ultra High Purity (UHP) Grade Nitrogen for consistent and safe discharge.
Anti-Corrosive Treatment: Phosphate-treated modules enhance durability in various environments.
Failsafe Operation: Works without external power—ideal for use during electrical failures and emergencies.
Low Maintenance & Cost-Efficient: Easy to service, recharge, and maintain over time.
Bar Code Labeling: Ensures accurate tracking and better inventory management.

TECHNICAL SPECIFICATIONS

MODEL	KMPRQ-2-50%
Capacity	2 kg	Design	Ceiling Mounted
Height (Approx.)	380 mm	Diameter (Approx.)	150±10 mm
Average Discharge Time	4-5 Sec.	Average Discharge	98%
Operating Temperature	-30 °C to +55 °C	Service/Max. service/Test Pressure	15 / 35 bar
Expelling Agent	Nitrogen (UHP Grade)	Full Weight (Approx.)	3.6 kg
Empty Weight (Approx.)	1.6 kg	Shipping Weight (Approx.)	3.7 kg
Mounting Bracket	Ceiling mounting stand	Approvals	Any Government approved Lab
Volume Protection	2.5 m 3	Area Protection	1-1.5 m 2
Hanging Height Above Risk	2 m
